Integrated Handpieces : Ergonomic : Functional : Reliable

After 35 years of outstanding global success, the classic NSK EX handpiece series has now evolved into a new stage. - NSK FX handpiece series - a modernization of the EX series. The traditional NSK simple design technology, functional reliability, durability, and cost effective pricing still remains, but FX has been updated to an integrated design in response to modern demands.

Technology & Function

  • Access
    Access

    The extra slim head and body design greatly improves direct and indirect visibility to the oral operational field. This includes increased visibility of even difficult access areas in the oral cavity.

  • Cartridge
    Cartridge

    In some instances cartridges are easily replaced in surgery with the accessory tools supplied withthe new product. Service costs and downtime are reduced (FX25).

  • Paste Defence System
    Paste Defence System

    The prophylaxis handpiece head incorporates the unique NSK Paste Defense System which prevents dust and polishing paste debris from entering the handpiece. In addition, the NSK DLC coating on the rotor prevents possible breakage caused by surface abrasions from the polishing paste. These are some features that illustrate extended FX handpiece durability (FX57).

  • Clean Head System
    Clean Head System

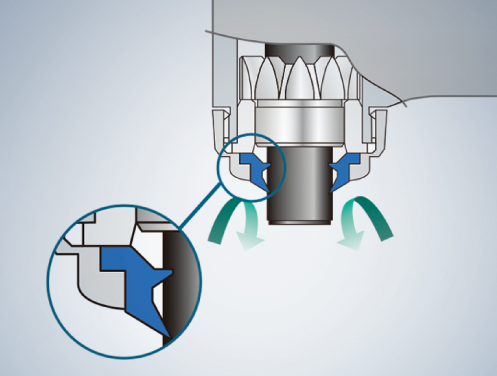

    The Clean Head System has an anti-suck back mechanism that stops blood and foreign matter from entering the head from the oral cavity. As a result, the ball bearings and mechanical parts last longer (FX25 / FX65).

  • High Precision Gears
    High Precision Gears

    The high-precision gears run quiet and are supremely durable, which also reduces uncomfortable vibration.

  • Push Button Chuck
    Push Button Chuck

    Push Button Chuck is NSK's original push button auto-chuck mechanism that tensions the bur grip during rotation. It allows one-touch bur insertion and removal without tools. The bur lock mechanism is designed so that bur retention strength increases when high loads are applied to the bur.

General Applications

FX154:1

  • General Applications/FX15
    • Non-Optic
    • Model:FX15
    • Order Code:C1053002

    Specifications

    • Gear Ratio
    • 4:1 Reduction
    • For
    • CA Burs (Ø2.35)
    • Body Material
    • Aluminium
    • Max Speed
    • 10,000 min-1

    Features

    • Clean Head System
    • Push Button Chuck
    • Ball Bearing

FX251:1

  • General Applications/FX25
    • Non-Optic
    • Model:FX25
    • Order Code:C1052002

    Specifications

    • Gear Ratio
    • 1:1 Direct Drive
    • For
    • CA Burs (Ø2.35)
    • Body Material
    • Aluminium
    • Max Speed
    • 40,000 min-1

    Features

    • Clean Head System
    • Push Button Chuck
    • Ball Bearing
